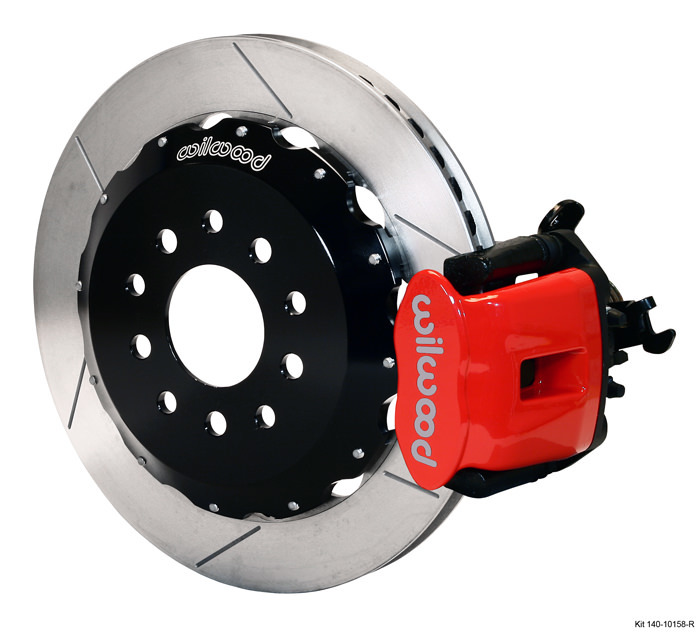

Wilwood CPB disc brake kits use hydraulic pressure from the master cylinder for stopping power and an internal mechanical lock within the caliper for a parking brake.
The kits include single-piston brake calipers, coupled with oversized two-piece brake rotor assemblies with aluminum hats and high-friction BP-10 compound brake pads. The Wilwood CPB disc brake kits also provide the correct balanced brake performance and matching style to complement front big brake upgrade kits.
Lug Hole Quantity: 5
Brake Rotor Bolt Pattern (in.): Dual 4.500 in./4.750 in.
Brake Rotor Bolt Pattern (mm): Dual 114.30mm/120.65mm
Rear Rotor Included: Yes
Rear Rotor Style: Slotted surface
Rear Rotor Construction: Vented
Rear Rotor Diameter: 12.88 in./327.15mm
Rear Rotor Thickness (in.): 1.000 in.
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: One
Rear Caliper Material: Forged billet aluminum
Rear Caliper Finish: Red powdercoated
Parking Brake Provision: Yes
Parking Brake Style: Mechanical caliper
Minimum Recommended Wheel Diameter (in.): 17 in.
Offset (in.): 3.250 in.
