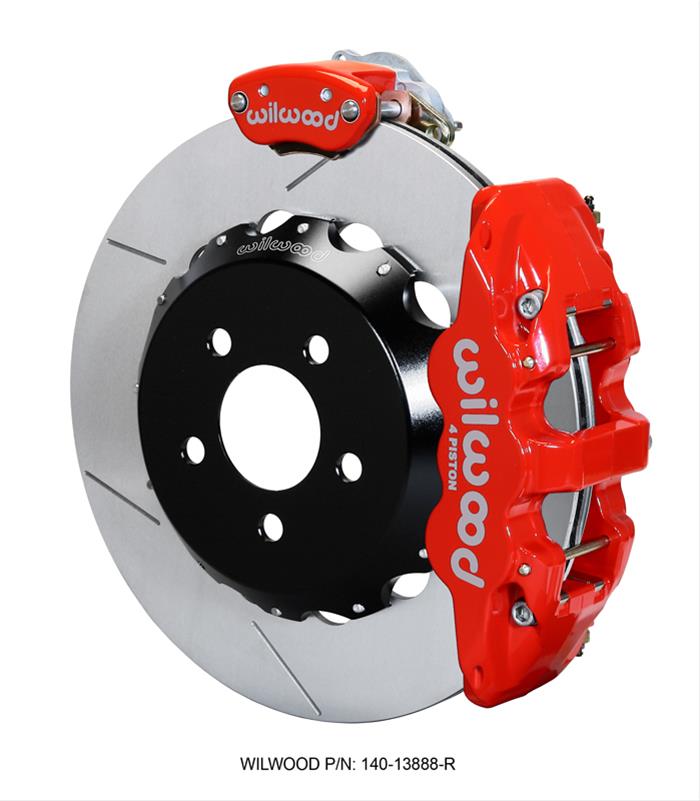

Wilwood AERO4-MC4 Big Brake Kits replace your factory disc brakes and use the OE parking brake assembly as a complement to front big brake upgrades on late model high performance vehicles. The kits feature W4AR calipers, BP-10 compound pads, and oversized 14 in. rotors for high-capacity braking and are matched to the OE master cylinder output, ABS function, and individual vehicle bias requirements. Wilwood AERO4-MC4 Big Brake rear parking brake kits provide enhanced brake performance, increased durability, and high-tech style.
Lug Hole Quantity: 5
Brake Rotor Bolt Pattern (in.): 4.500 in.
Brake Rotor Bolt Pattern (mm): 114.30mm
Rear Rotor Included: Yes
Rear Rotor Style: Slotted surface
Rear Rotor Construction: Vented
Rear Rotor Diameter: 14.00 in./355.60mm
Rear Rotor Thickness (in.): 0.810 in.
Rear Caliper Included: Yes
Rear Caliper Piston Quantity: Four
Rear Caliper Material: Forged billet aluminum
Rear Caliper Finish: Red powdercoated
Parking Brake Provision: Yes
Minimum Recommended Wheel Diameter (in.): 18 in.
Brake Hoses Included: Yes
