Professionally engineered, proven endurance
CorteX coilover struts housing and shock mounts are some of the most rigorously tested components in the industry. As former structural analysis engineers, we understand strength, deflection, and fatigue and how they apply to mechanisms such as suspension systems.
Every component we see undergoes both computer-simulated finite element modeling as well as confirmation with real-life use. Purchase with confidence knowing you are getting the highest quality products possible with the most value.
Our strut housings and mounting brackets are built of bulletproof steel which offers more tire clearance and reduced weight compared to bulkier aluminum components. Since struts see significant bending loads (unlike shocks which are mostly limited to tension and compression loads) stiffness of the housing is essential in order to minimize camber loss and prevent bending and component damage in the event of accidental abuse from contact or an off-track excursion. Engineers know that aluminum deflects 3 times more than steel however it is also 1/3 the weight. What this means is that if you are designing a component for stiffness the aluminum needs to be 3 times thicker to have the equivalent stiffness of the steel parts. With that knowledge, it is easy to deduct that no weight will be saved by using aluminum in the design. Steel also has superior fatigue properties than aluminum which means that it can be loaded closer to its limits over time (cycles) without fatigue failures. Aluminum, in contrast, must be kept further below its load limits to avoid fatigue failure. That is the exact reason that lightweight airplane components are replaced on a predetermined schedule since the engineers know how long the aluminum parts can safely be kept in service before a fatigue failure is likely to occur.
This system includes:
- Struts Assembly with Penske Internals (pair)
- Camber Plate (pair)
- Camber slugs allowing high camber to be achieved by resetting the camber range on the strut body
- Choice of Springs
- All mounting hardware to complete the installation

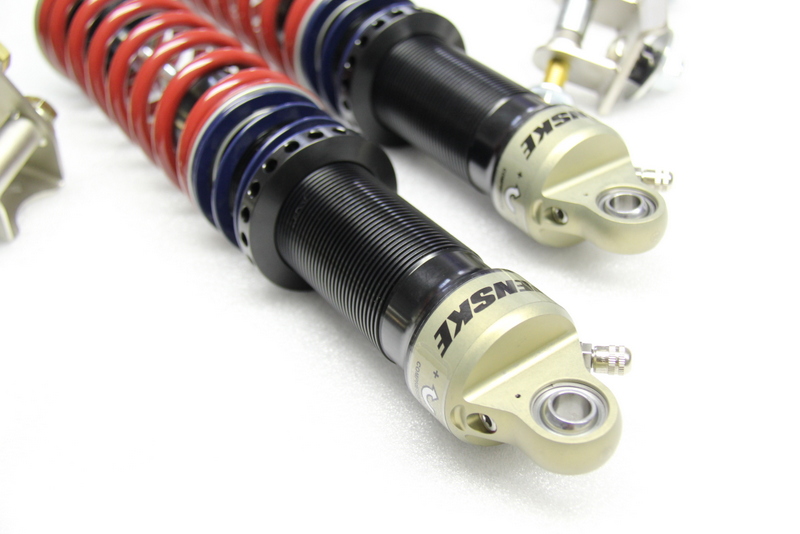

- Penske Double Adjustable 7500 series dampers
- Springs and appropriate valving
- Coil over hardware
- Mounting brackets and hardware
