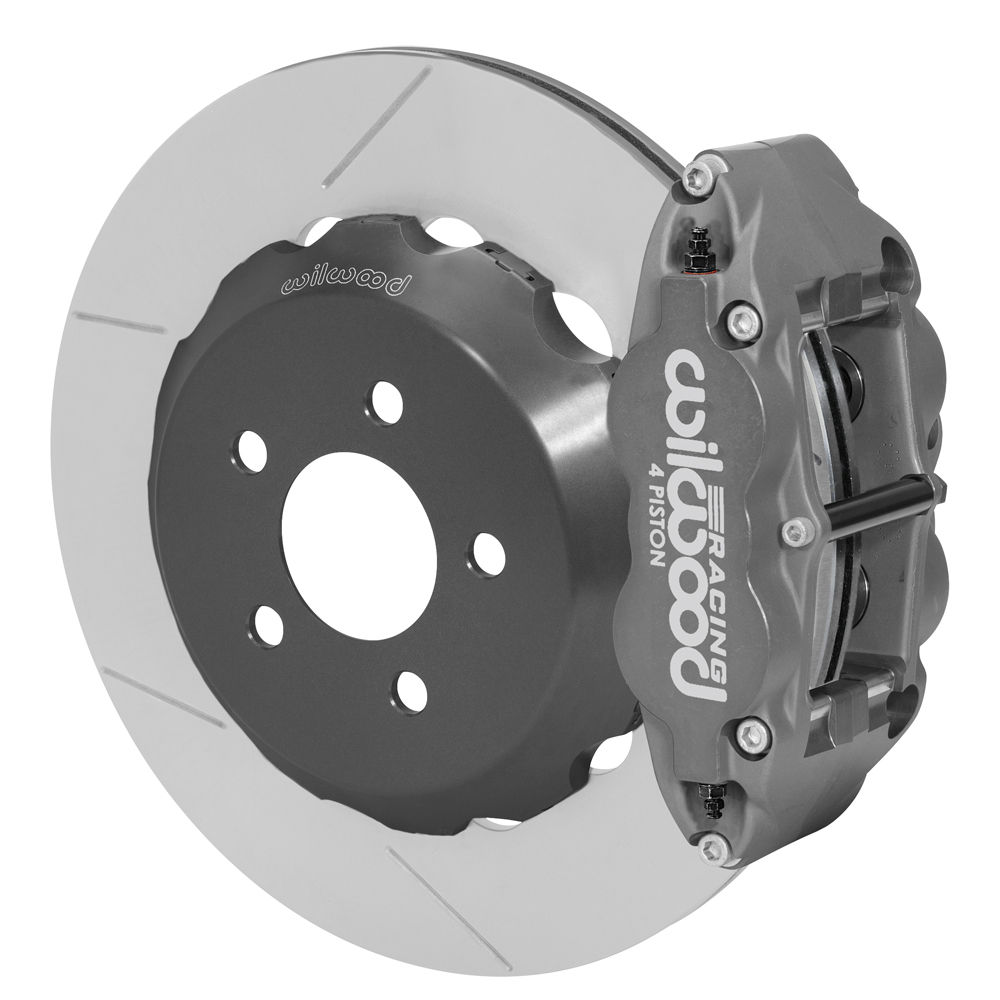

CorteX - Wilwood FFR CV Floater, Big Brake Rear Brake Kit (Race)

Forged Superlite 4R Big Brake Rear Brake Kit (Race)

Wilwood Forged Superlite 4R Big Brake Rear Brake Race Kits

• Forged Narrow Superlite 4R/ST four piston radial mount race caliper rear kits are the engineered match for the AERO6R/ST front race kits on vehicles intended for unrestricted road race competition. All emphasis is on matched front to rear balance, high durability, and high efficiency heat management, without adding unnecessary rotating or unsprung weight to the driveline and rear suspension. FNSL4R/ST calipers use a forged aluminum body and feature a Type III Mil-Spec, medium gray color hard anodized finish. Hard anodizing provides superior wear resistance in the piston bores, and high resistance to abrasion and corrosion throughout. Thermlock® pistons are used to reduce heat transfer from the pads to increase fade resistance, and extend service life by decreasing temperatures in the caliper body, fluid, and seals. Internal damper springs and controlled retraction, high-temperature piston seals assure consistent pedal height from start to finish. Caliper piston volumes are matched for full compatibility with the OE master cylinder output and ABS controls. The calipers are also fully compatible with manual brake conversions to balance bar pedals using appropriately sized master cylinders. Spec37 alloy GT series directional vane 13.00” rotors are dynamically mounted using our new Dynamic Lug Mounting system to forged aluminum hats. As is with the calipers, the hats are hard anodized for superior wear resistance and extended service life at the load-bearing surfaces. Mounting brackets, including all premium grade fasteners, secure the calipers to the uprights in the stock location with no modifications required. This championship-proven system is completed with high temperature, high friction, race compound pads selected specifically by application. Installation requires the separate purchase of the stainless steel braided flexline kit that must be ordered according to the model year.
  Additional caliper features:


• Internal damper springs and controlled retraction, high-temperature piston seals assure consistent pedal height from start to finish
• Piston volumes are matched for compatibility with the OE master cylinder output and ABS controls
• Fully compatible with manual brake conversions to balance bar pedals using appropriately sized master cylinders


Position: Rear

Rotor Included: Yes

Rotor Style: Slotted surface

Rotor Construction: Vented

Rotor Diameter: 12.88 in./327mm

Rotor Thickness (in.): 1.00 in.

Lug Hole Quantity: 5

Brake Rotor Bolt Pattern (in.): 4.500 in.

Brake Rotor Bolt Pattern (mm): 114.30mm

Calipers Included: Yes

Caliper Piston Quantity: Four

Caliper Material: Forged billet aluminum

Caliper Finish: Anodized Grey (hard coat)

Minimum Recommended Wheel Diameter (in.): 17 in.

Friction Material (pads) included: BP-30

*Brake Lines are not included

*** No provisions for park brake ***
