How to Buy
Due to the technical nature of this product, it is highly recommended that you call us to order.
This is a "builder" kit which means you will need to customize it to fit your application. Parts are supplied mostly unwelded and unfinished.
Step 1. Choose your rear end, either with the premium 9" axle housing included in this product or with a new Moser M88 housing (sold here)
Step 2. Choose your rear shocks. You can browse available rear shocks here.
Step 3. Choose your brakes. You can browse available rear brake systems here.
Vehicles: Falcons, Fairlanes, Mavericks, Torinos, F100, C10, etc.
- Ideal for modern performance tires
- Optimize stance, adjust ride height as much as 2.5 inches lower
- Corrects the roll center height, lateral roll center migration
- Minimizes bumpsteer
- Adjustable for track or street use
A complete redesign utilizing modern geometry

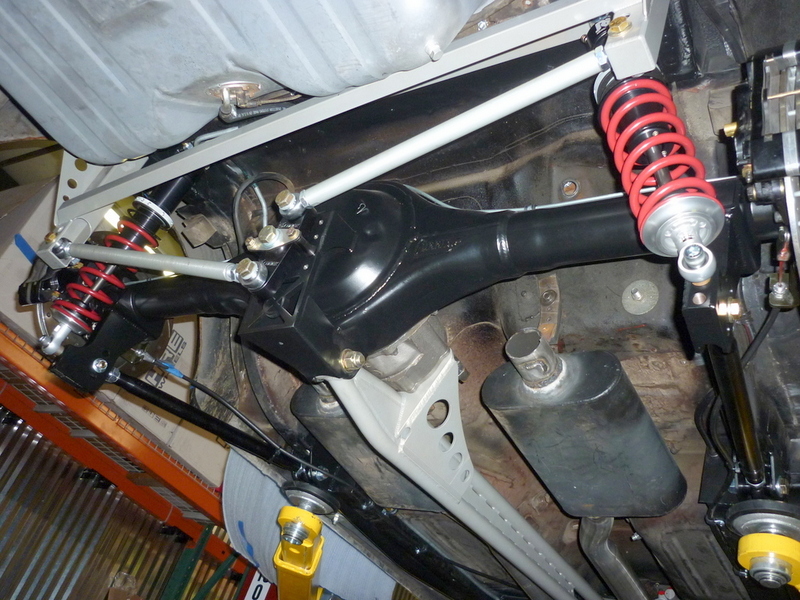

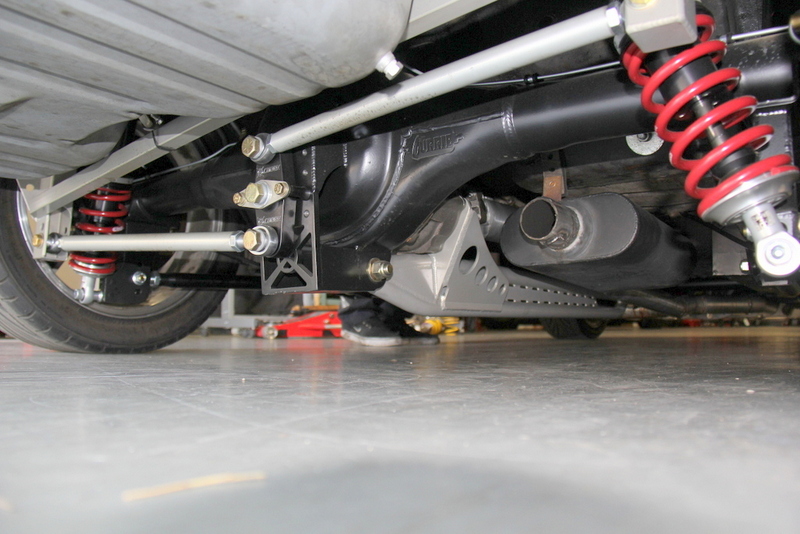

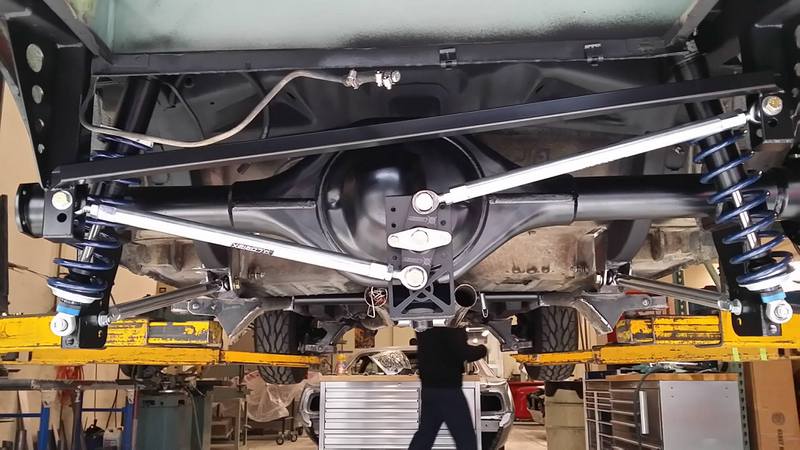

Particular consideration was given to packaging, weight, and suspension geometry. The leaf springs suspension was discarded in favor of a watts link, torque arm, and Coilover package which does everything better than the original suspension.
Feel the reduction of unsprung weight and friction.
Rear grip is exponentially improved and power is put down effortlessly both in a straight line and coming off of corners. The torque arm serves double duty and also virtually eliminates nose-dive under braking. Instead, the entire chassis squats as the deceleration loads push the entire car into the pavement at its center of gravity. If you’ve never driven a car with a well-designed watts link/ torque arm combination be prepared for a revelation. You won’t go back to anything else!
Increase chassis strength and stiffness
The engineers at CorteX designed the Watts Link System to optimize superior responsiveness and durability using professional engineering and testing methods.
Includes:

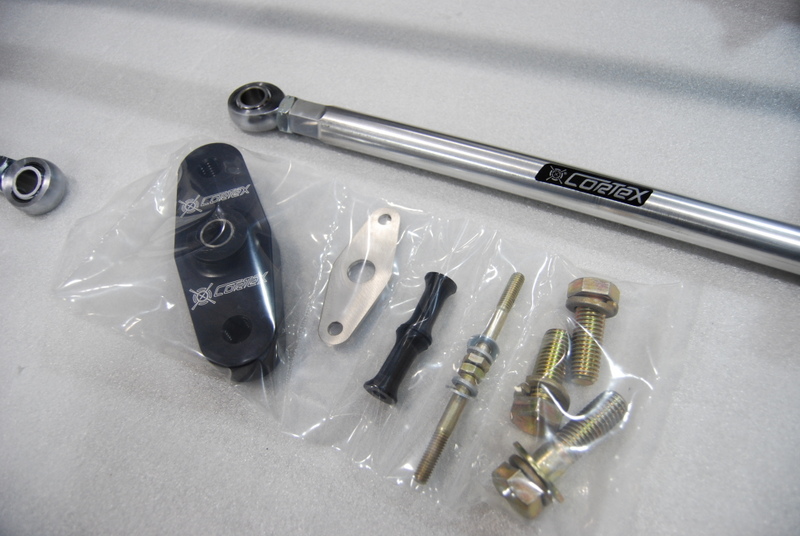

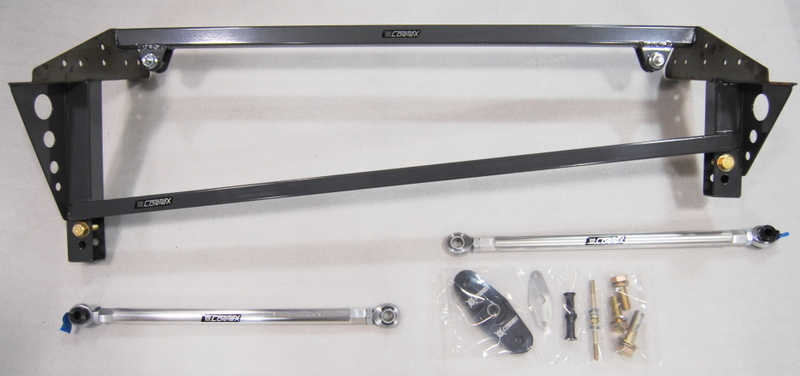

- Xtreme-Grip Builder Watts link System
- Xtreme-Grip Builder Torque arm

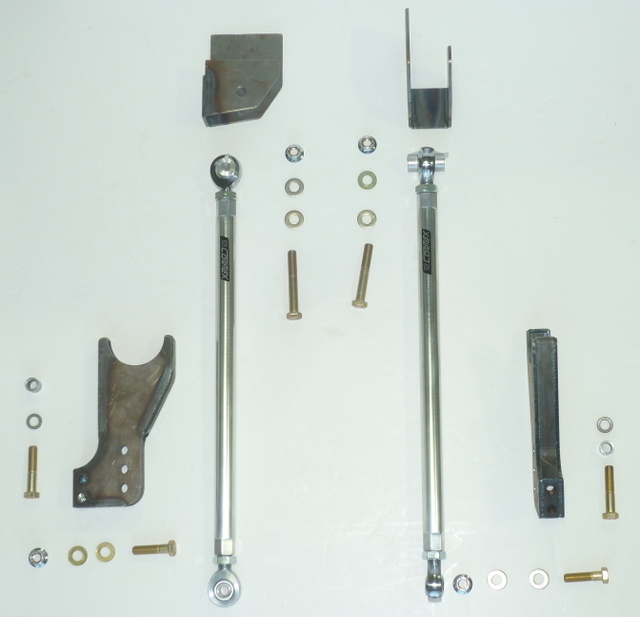

- Rear Lower Builder Control Arms
- Premium 9-inch Rearend Housing and axle with Big Bearings (New Style Torino)
- Moser M88 8.8 Housing available as an option
- Most of the necessary hardware
Coilover sold separately. See options at checkout.
