Caster Camber Plates for Coilover Shocks
Vehicles: 2015-2022 Ford Mustang and Shelby GT350
CorteX Racing Caster Camber Plates provide straightforward way to properly align your S550 Mustang’s front tires.
Especially suited for lowered Mustangs or anyone seeking to get additional negative camber and equalize caster values as well.
CorteX Racing’s robust design allows for precision camber and caster adjustment all of which is done from the top of the shock tower.
There is no need to get under the vehicle once the installation of the camber plates is complete.
The CorteX design allows for a small range of caster adjustment intended to allow equalizing the left and right side camber to keep the car symmetric and straight during heavy braking. For performance driving you can expect to get as much as -3.0 degrees or more of negative camber with the car lowered.
Lowered Mustangs Need Camber Recalibration
Dropping your Mustang ride height will increase the negative camber. Tire life may be increased by restoring the OEM camber settings.
Quality Design Professionally Engineered

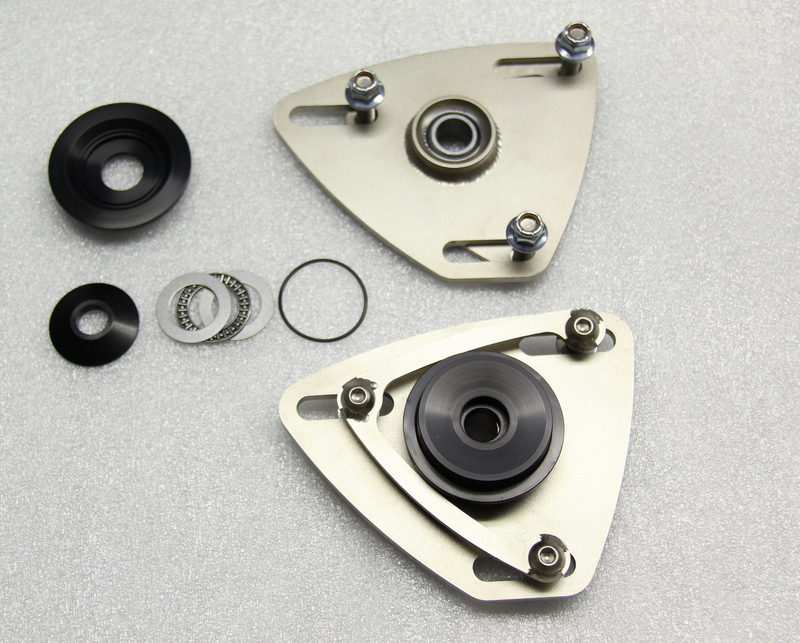

Main plate is constructed of laser cut cold rolled steel that is virtually bulletproof. An extreme-duty, oversized spherical bearing is used made of hardened alloy steel with teflon liner. This spherical bearing is rate at several times the actual working load that will be seen from driving. To finish off the design, wall fabricated pieces are bead blasted and plated with electroless nickel. We have some of the highest standards for production quality in the industry.
The spring seats are designed to work with 2.5 ID coilover springs. Torrington bearings sealed with o-rings keep the dirt out and ensure a smooth, quiet operation and can easily be serviced.
All parts of the CorteX Racing Caster Camber Plates are proudly made in the USA.
Fitment: Please note, these camber plates are designed for vehicles utilizing CorteX coilover systems. These may fit with other brands of coilover style struts but cortex cannot guarantee such fitment.
